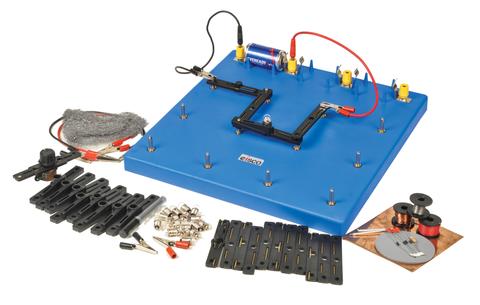

CIRCUIT BOARD KIT - WORCESTER

This well proven battery operated kit has been revived in popularity of late due to it's simplicity and ease of use compared to other more complex kits available. Originally developed in the U.K. it is used to demonstrate simple series and parallel circuits, heating and magnetic effect of an electric current including a current balance, effects of resistance and the use of a rectifier in a circuit. Very reliable, quick and easy electrical connection and disconnection can be made. Lighting and electroplating circuits can be set up. Steel wool. Baseboard size: 300 x 300 x 70mm.

Kit comprises:

20 x MES lamps (torch bulbs),
1 x baseboard with battery holders,
10 x spring connectors with lamp holders,
12 x ordinary spring connectors,
1 x spring connector with rheostat,
1 x silicon rectifier,
1 x resistor,
Leads with alligator clips which are used as connectors in some instances,
2 x spring connectors with contact keys (switches),
2 x soft iron nails,
1 x reel copper wire,
1 x reel constantan wire,
1 x length plastic covered copper wire

Spare Parts may also be ordered, check with rae@readpacific.co.nz for further details
