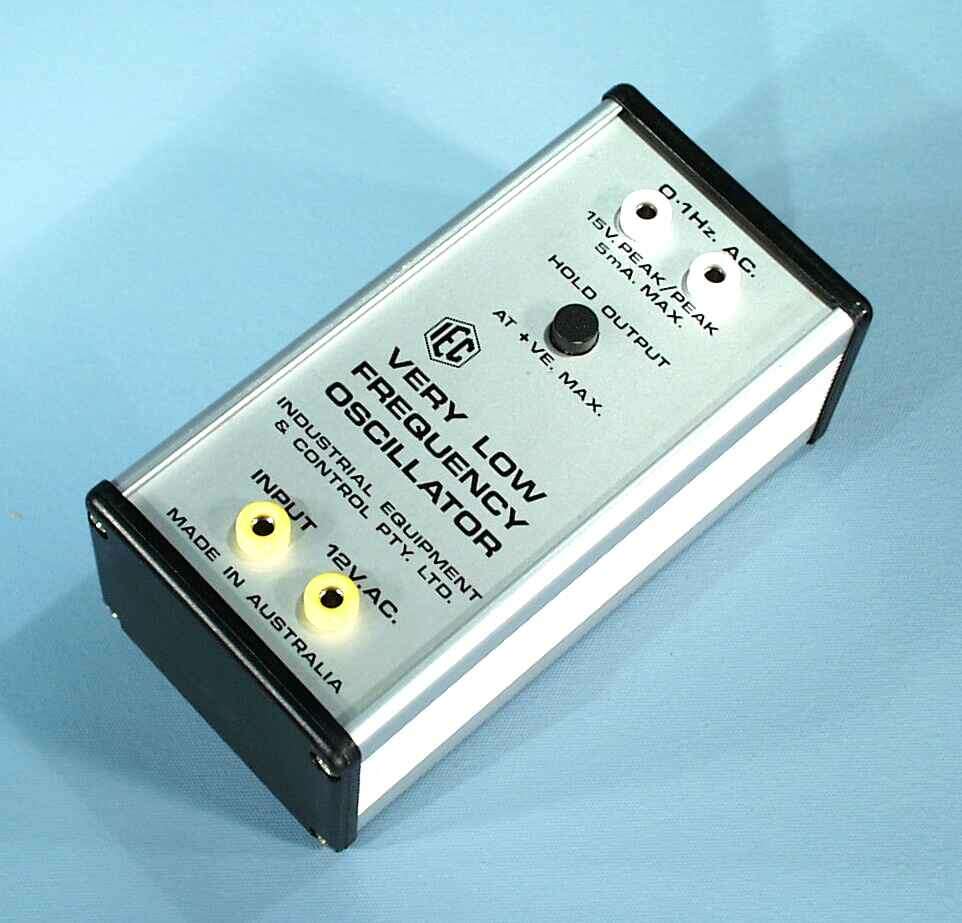

Sine generator.

A fixed 0.1 Hz +/-5% sine wave oscillator.

Output 15V Peak/Peak at 5mA maximum.

Control is by a press button to stop oscillation to hold output as a steady 7.5V.

Upon release of button, oscillations will begin from 7.5V.

Input and output connections are 4mm sockets.

The instrument can be used to demonstrate half wave and full wave rectification and using the inductance apparatus, experiments can be performed to demonstrate relationships in capacitors and inductors.
